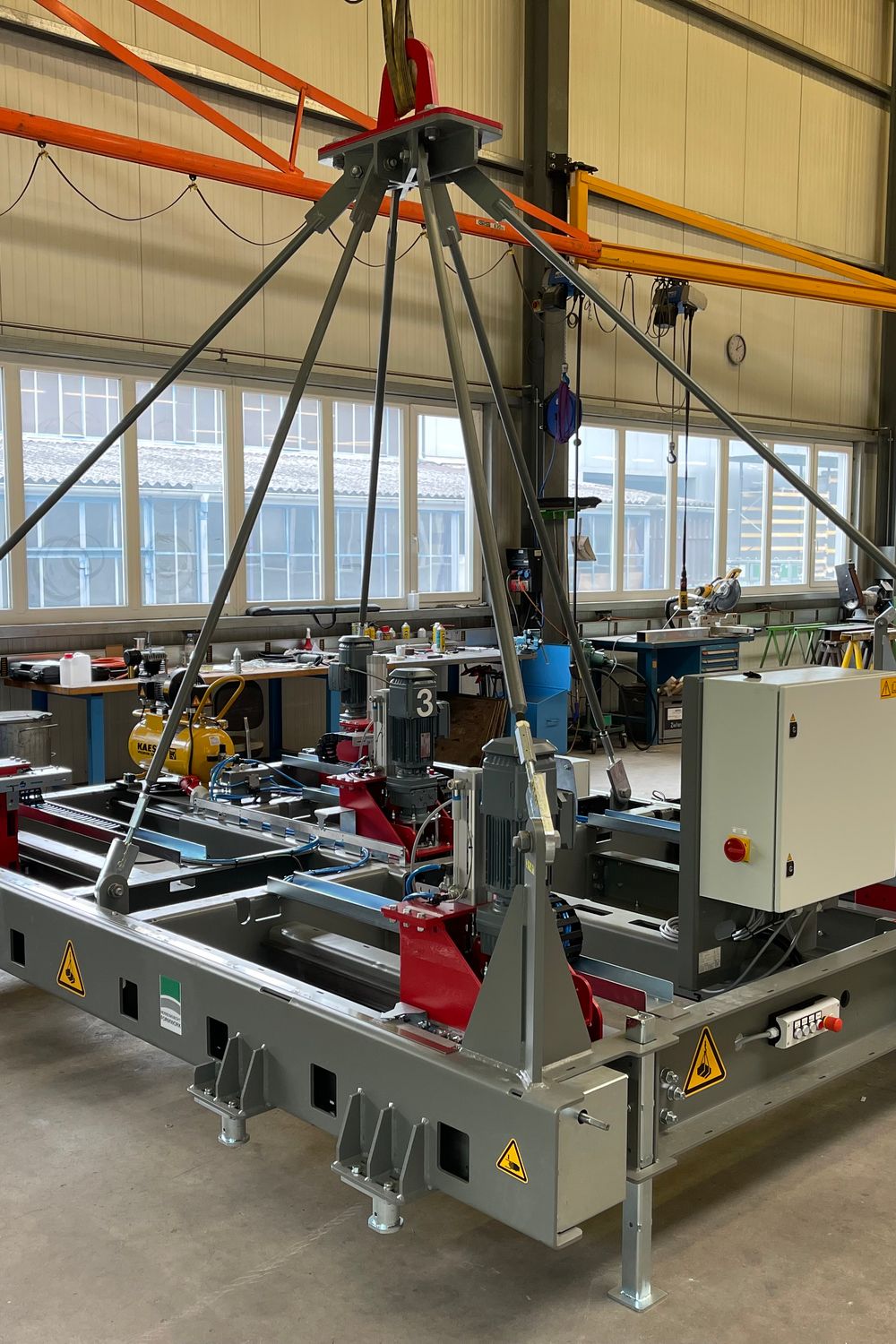

DDF - Lifting frame for track slabs
The DDF lifting frame provides efficiency and safety in the production and handling of track slabs. The system is available in 3 different versions.
You can purchase the system in a fully fixed version (spindle heads are not adjustable), a partially fixed version (the center spindle head is fixed), or a fully adjustable version (all spindle heads are adjustable). The spindle heads can be adjusted with a crank.
DDF Lifting frame for track slabs
Operating unit:
The operating unit of the DDF lifting frame enables safe and guided operation by means of light indication.
Spindle heads:
The spindle heads have a universal joint that makes it easier to screw the threads into the nuts of the concrete elements.
Technical data DDF - 5.0T-GTP:
| Payload: | 7,000kg |
| Net weight: | approx. 2,500kg |
| Voltage: | 400VAC |
| Protection: | 16A |
